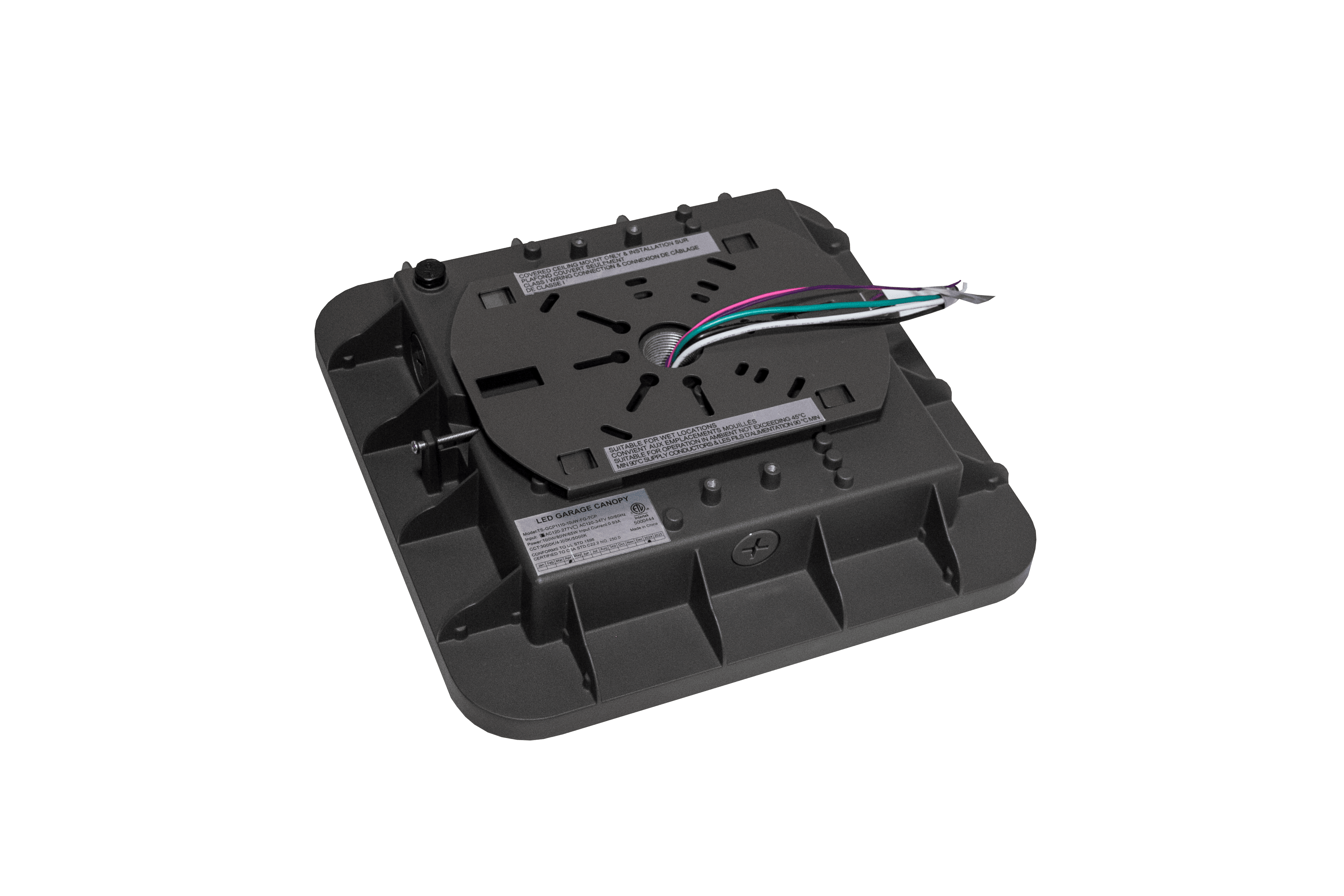

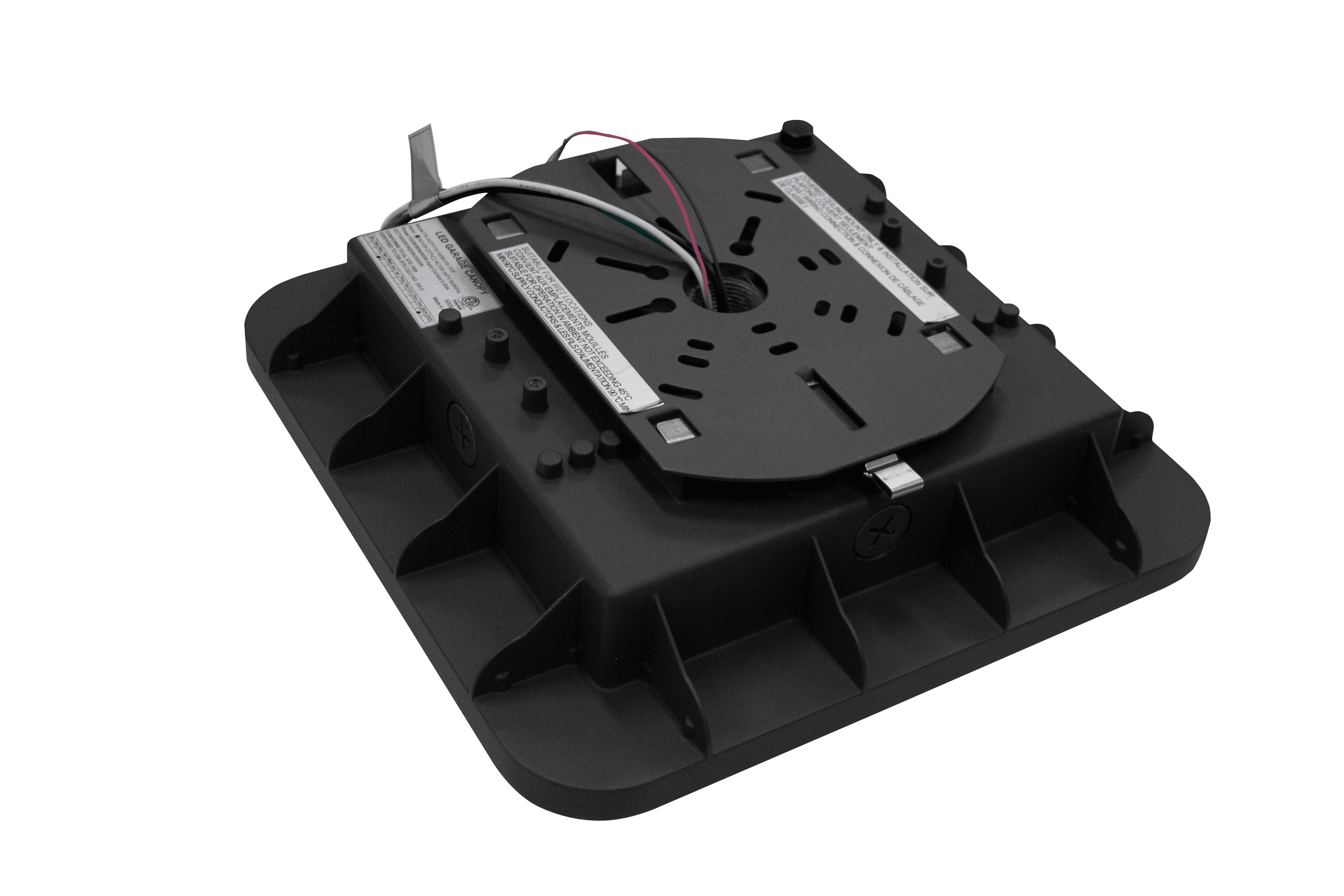

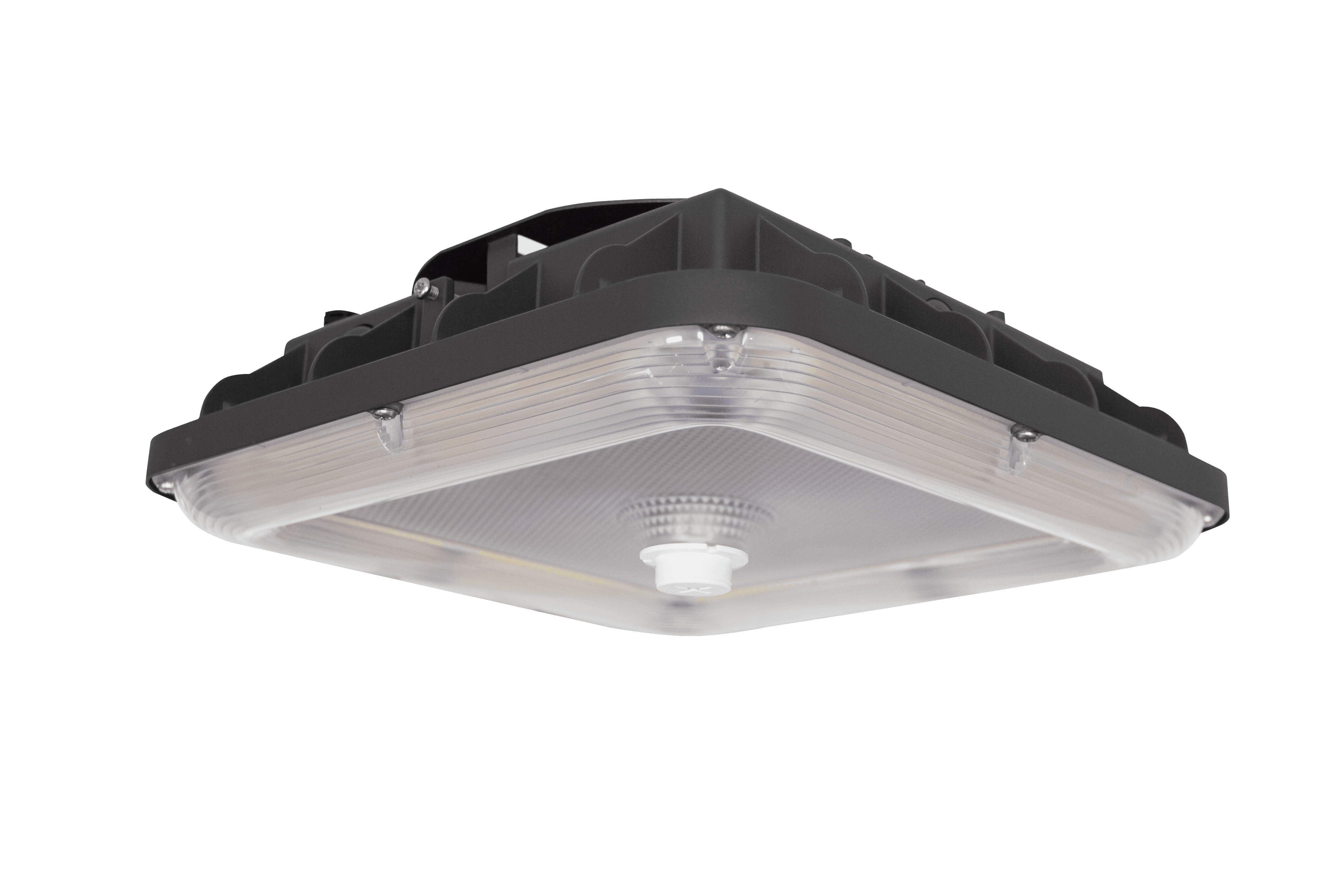

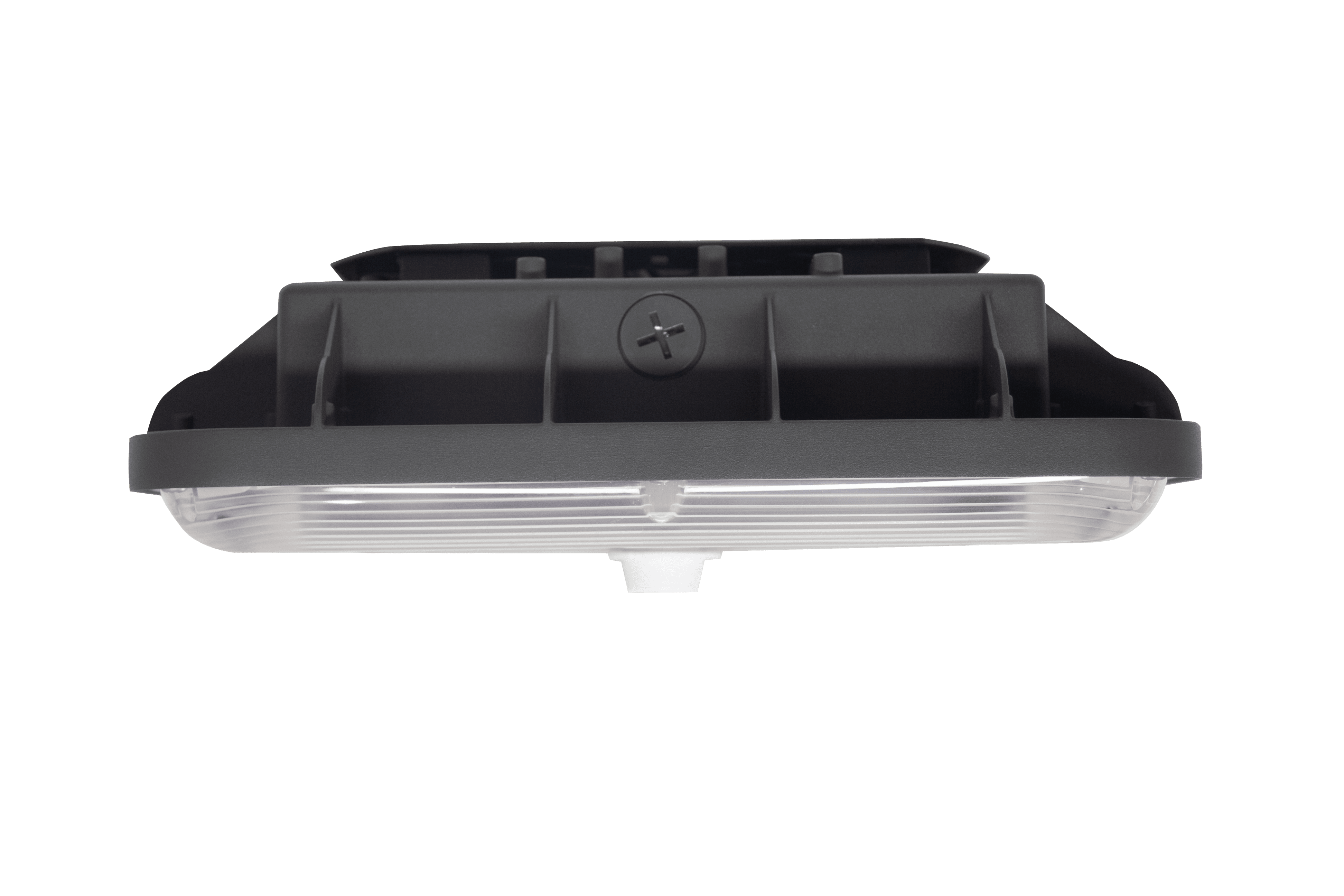

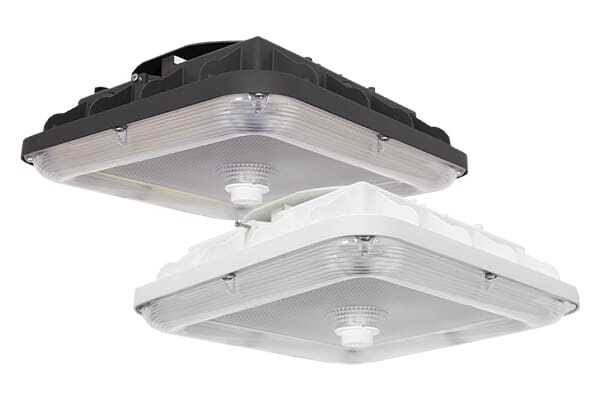

UCS – Under Canopy and Garage light
3 Power and 3 CCT selectable

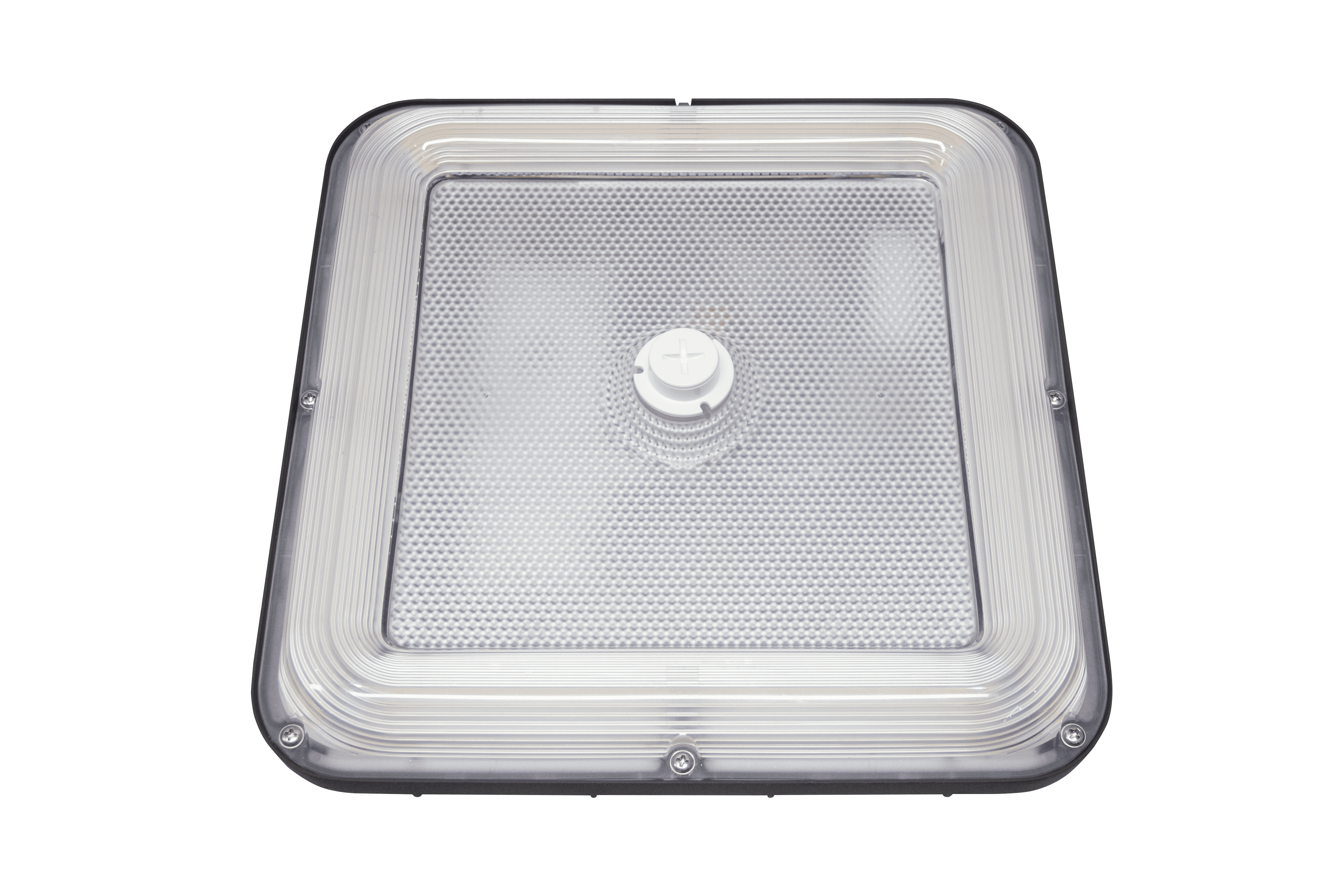

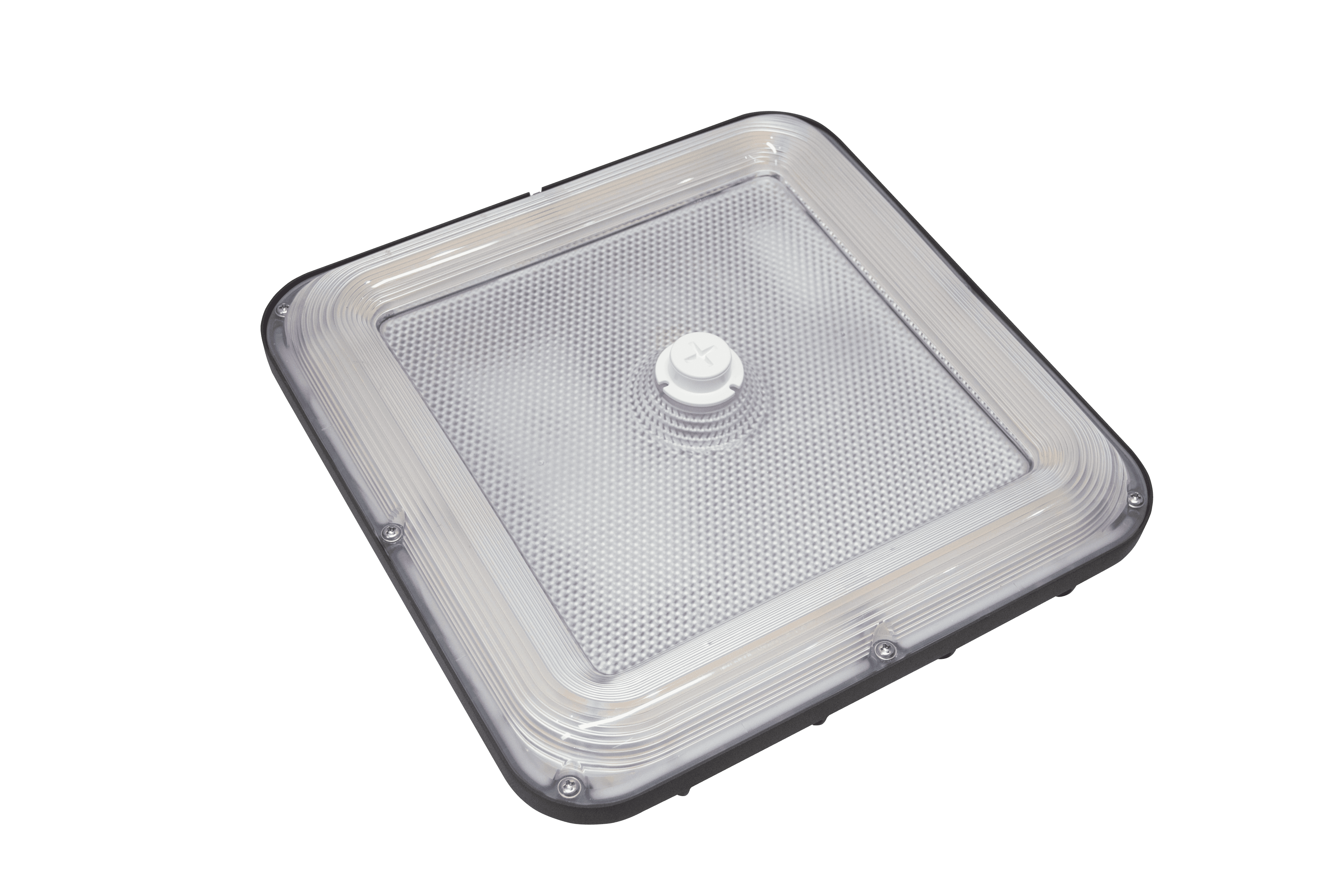

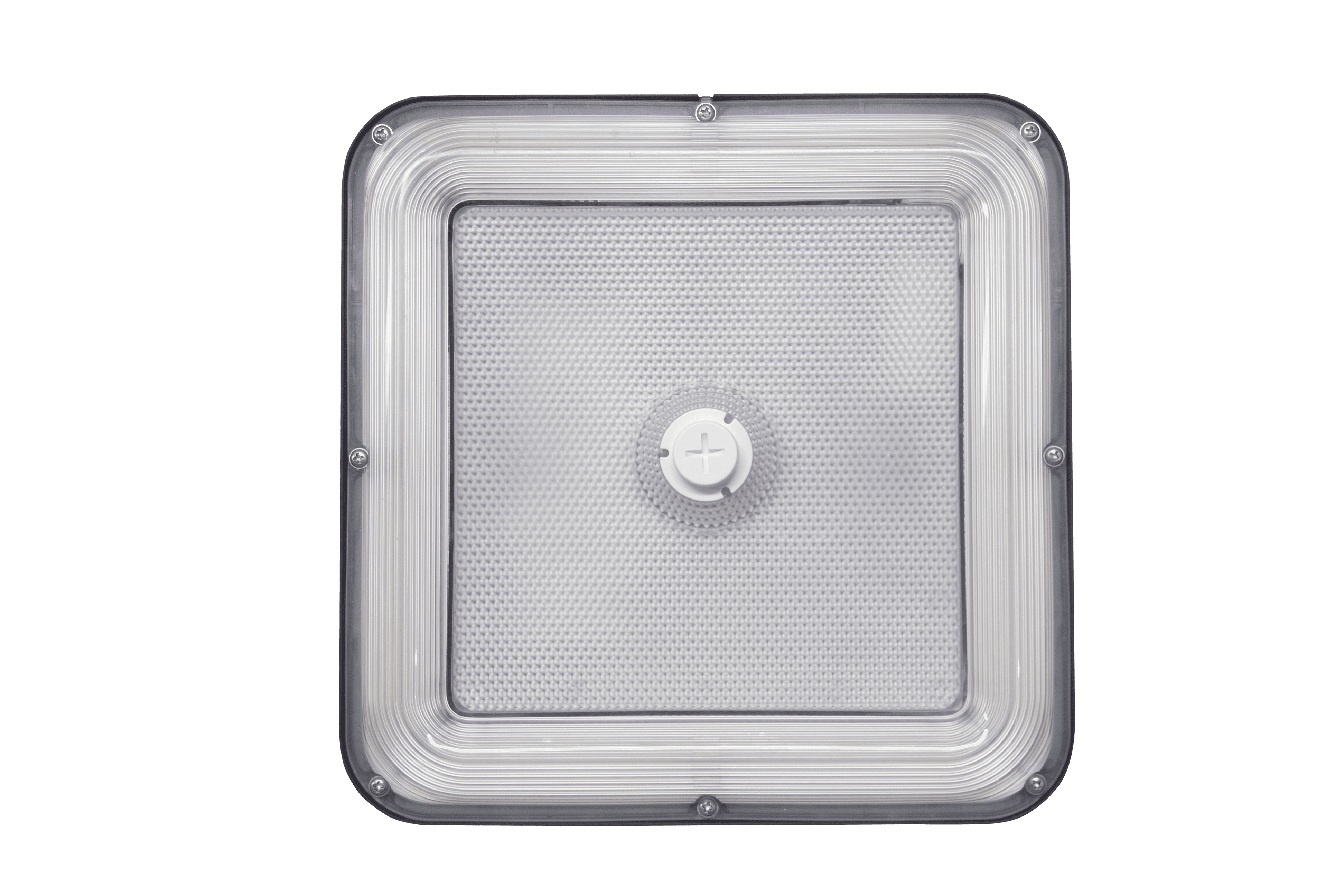

The UCS canopy luminaire is a versatile, energy-efficient solution for surface-mount applications for walkways, overhangs, and parking garages. Internal field adjustable switch panel easily changes power, color temperature and integrated photocell. The series comes with pre-installed sensor receptacle which makes it compatible with motion sensors. The frosted lens creates a visually comfortable illumination and uniform distribution.
Quick Ship
Yes
Mounting
Under Canopy
Lamp Type
LED
Size
11"
Shape
Square
Material
Die Cast Aluminium
Casting Colour
Bronze,

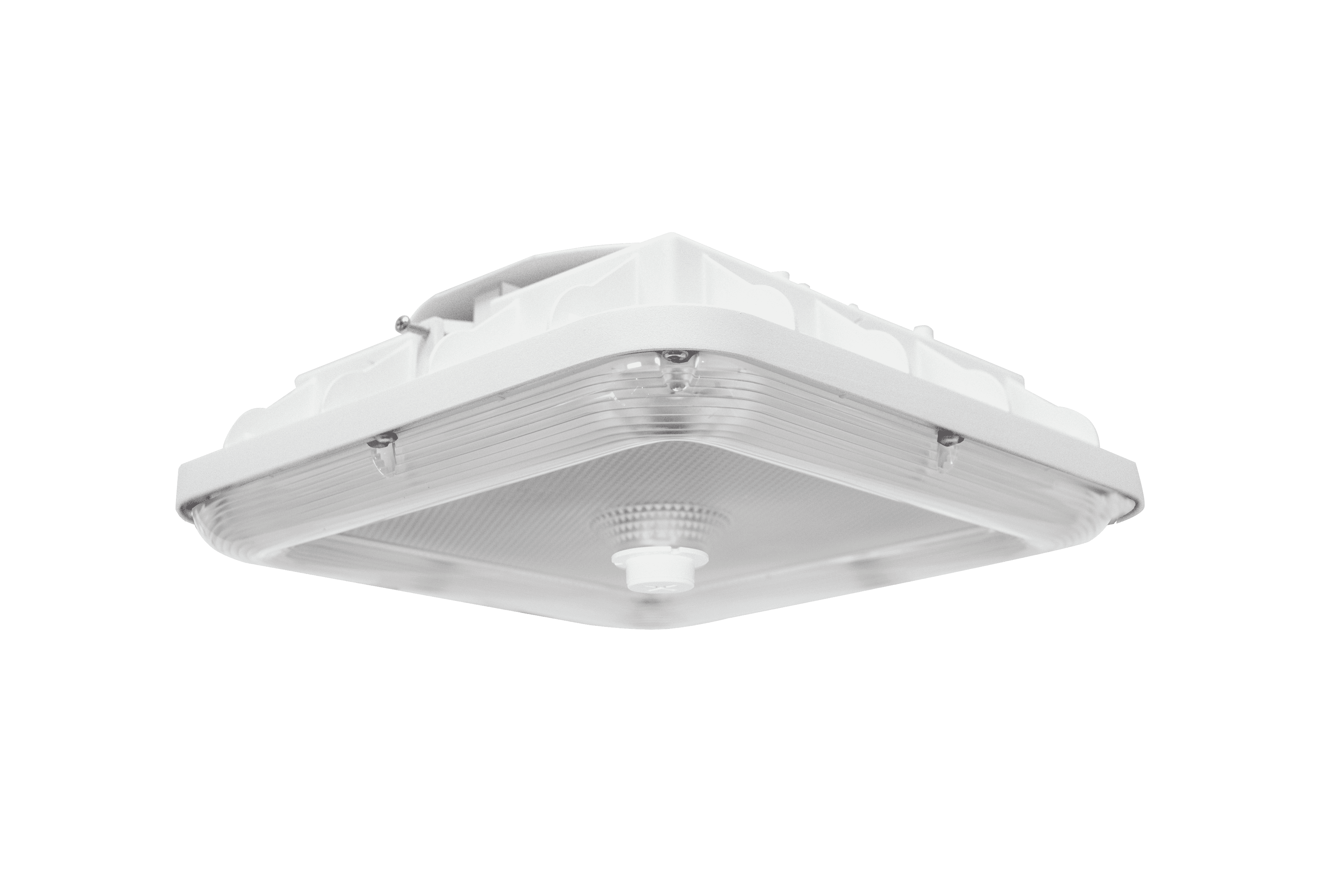

White
Dimmable
Yes
Wattage
40/60/70 W
Voltage
120-347V
Colour Temperature
3 000/4 000/5 000 K
Lumen Output Range
8 001-10 000,
4 001-6 000
Ratings
IP65
Environment
Wet
Dimming
0-10V
CRI
80
